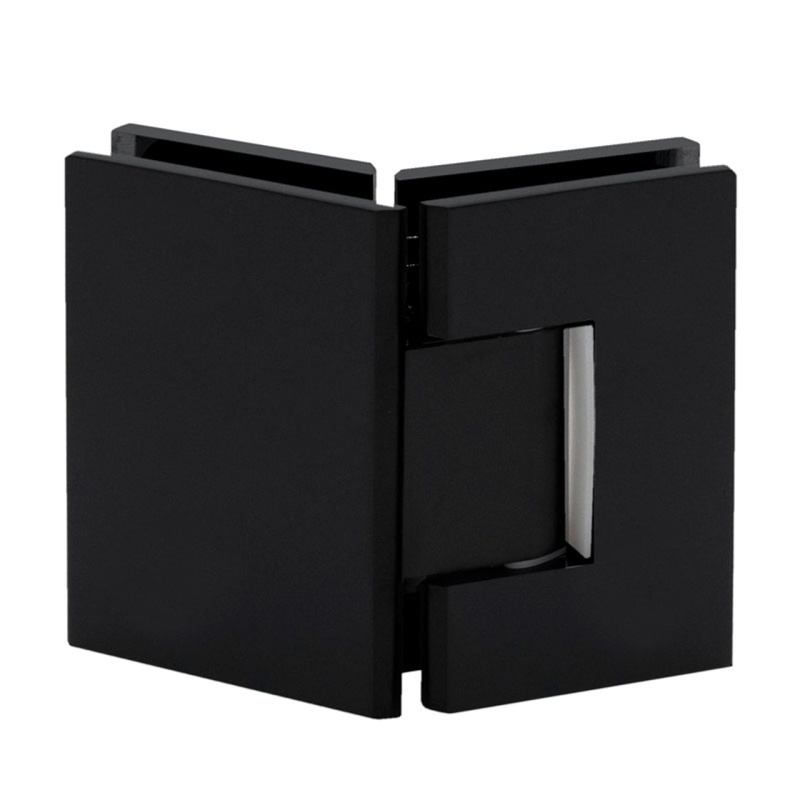

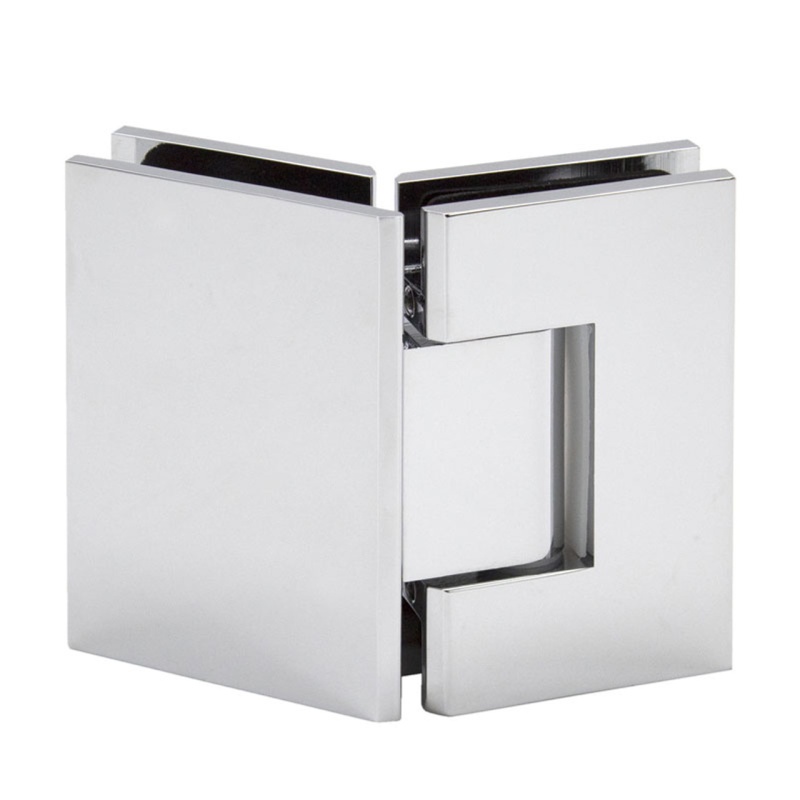

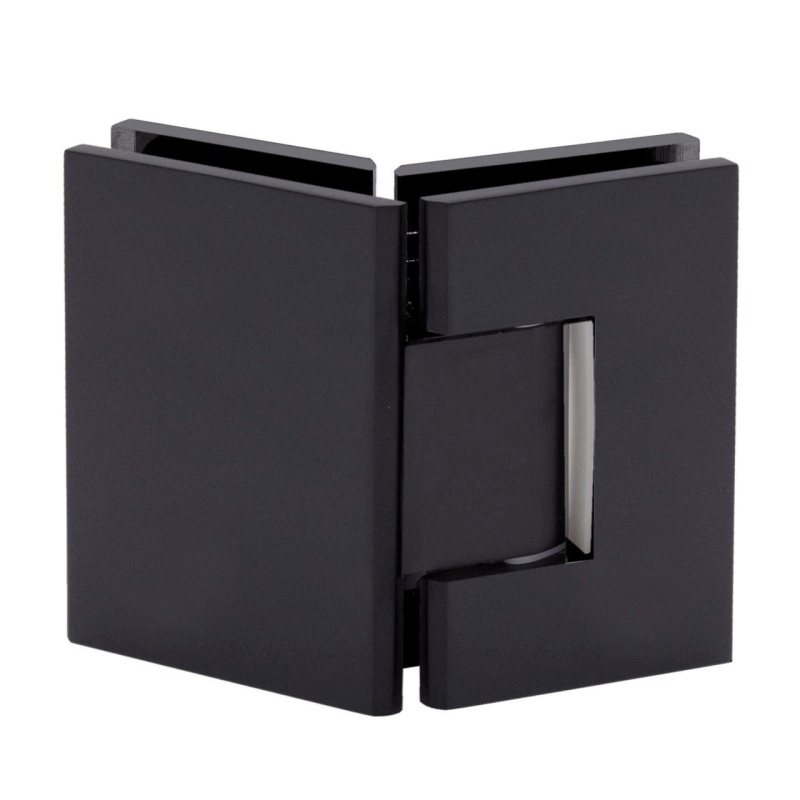

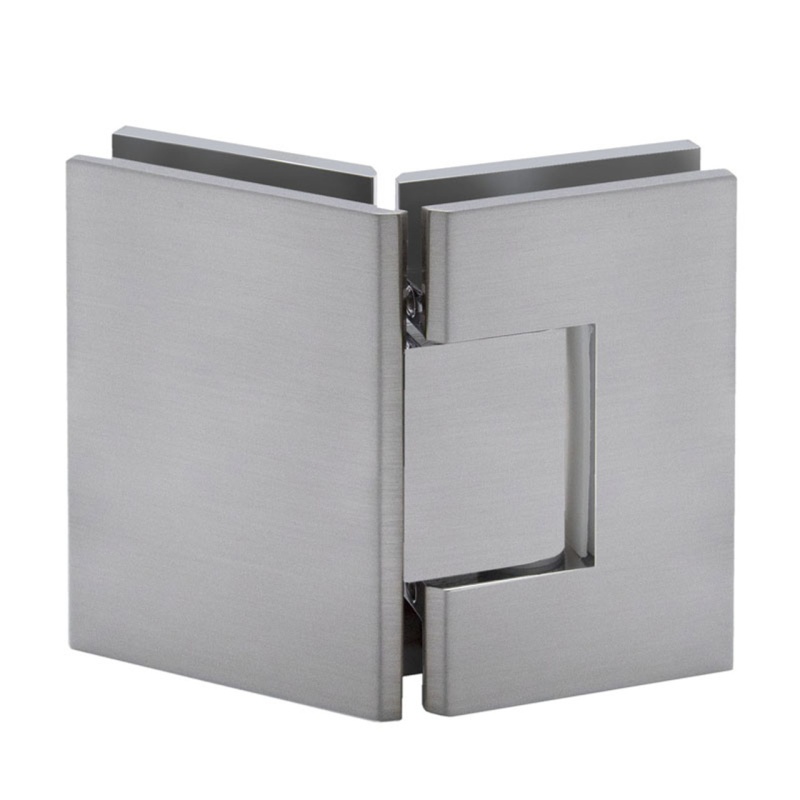

Compare to Geneva GEN545, Designer H135GTG5 Square Profile Glass to Glass 135 Degree Hinge Designed For 3/8"-1/2" Glass For use with tempered or tempered/laminated glass Many Popular Finishes to Select From Self-Centering within 15 Degrees of Closing Position Commonly used in Residential Bath and Commercial Hotel Applications Reversible 5 Deg Pivot Pin For Jobs Requiring a Positive Closing Position Glass Specifications MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS Approx. 5 lb/ft² 1/2" (12 mm) GLASS Approx. 6.4 lb/ft² DOOR WEIGHT DOOR WIDTH Using 2 Hinges 80 LBS (36 kg) 28" (711 mm) Using 3 Hinges 120 LBS. (54 kg) 32" (813 mm) NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
More Information Product Name FHC Glendale Square 5 Degree Positive Close Glass To Glass 135 Degree Hinge Item No GLEN535
