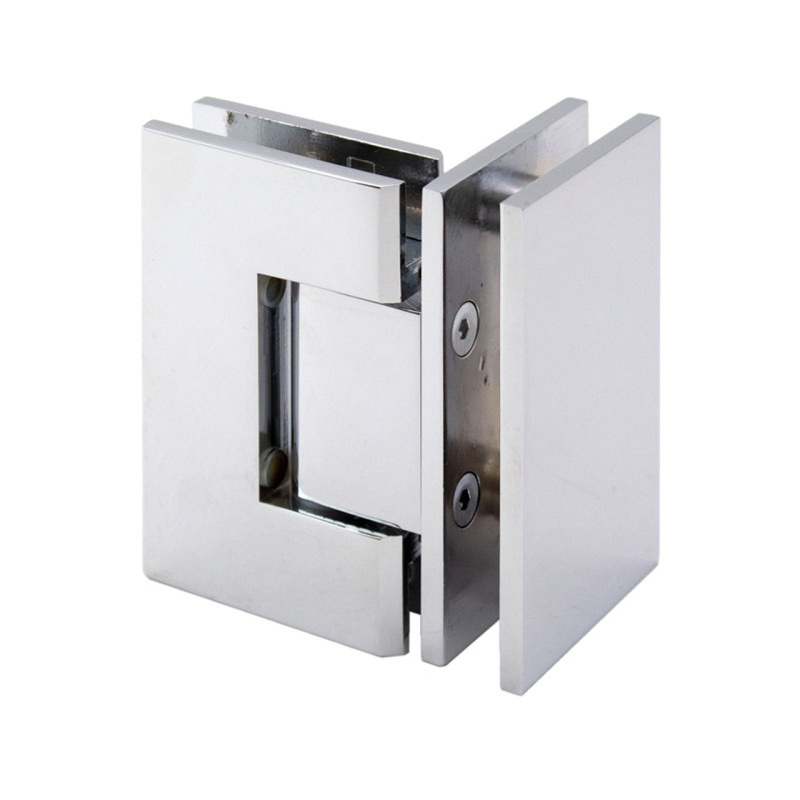

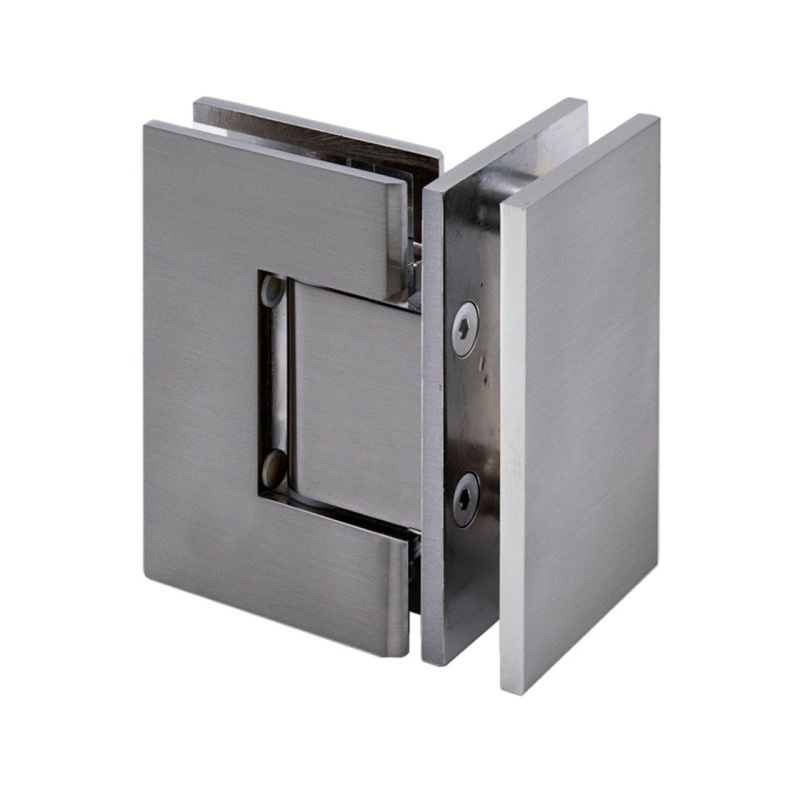

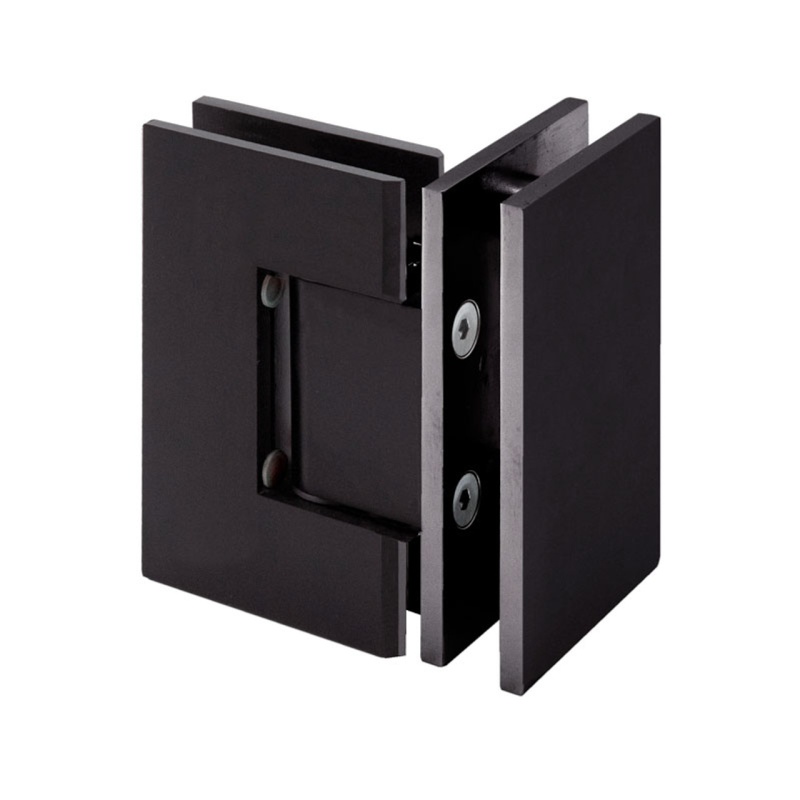

Compare to Geneva GEN092, Designer H90GTG For 3/8" to 1/2" Glass For use with tempered or tempered/laminated glass Solid Brass Construction Easily Converts to 5 Degree Offset Used in 90 Degree Glass to Glass Applications Glass Specifications MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS Approx. 5 lb./ft² 1/2" (12 mm) GLASS Approx. 6.4 lb./ft² DOOR WEIGHT DOOR WIDTH Using 2 Hinges 80 LBS (36 kg) 28" (711 mm) Using 3 Hinges 120 LBS. (54 kg) 32" (813 mm) NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
More Information Product Name FHC Glendale Square Glass To Glass 90 Degree Hinge Item No GLEN90 Compare To GEN092, H90GTG Minimum Order 1 Each Downloadable Documents
