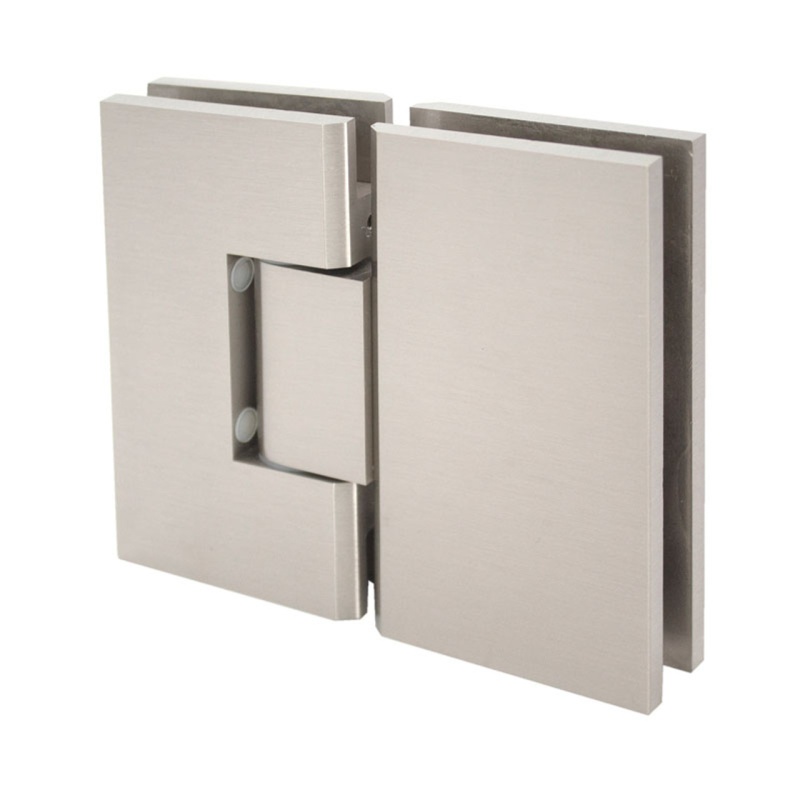

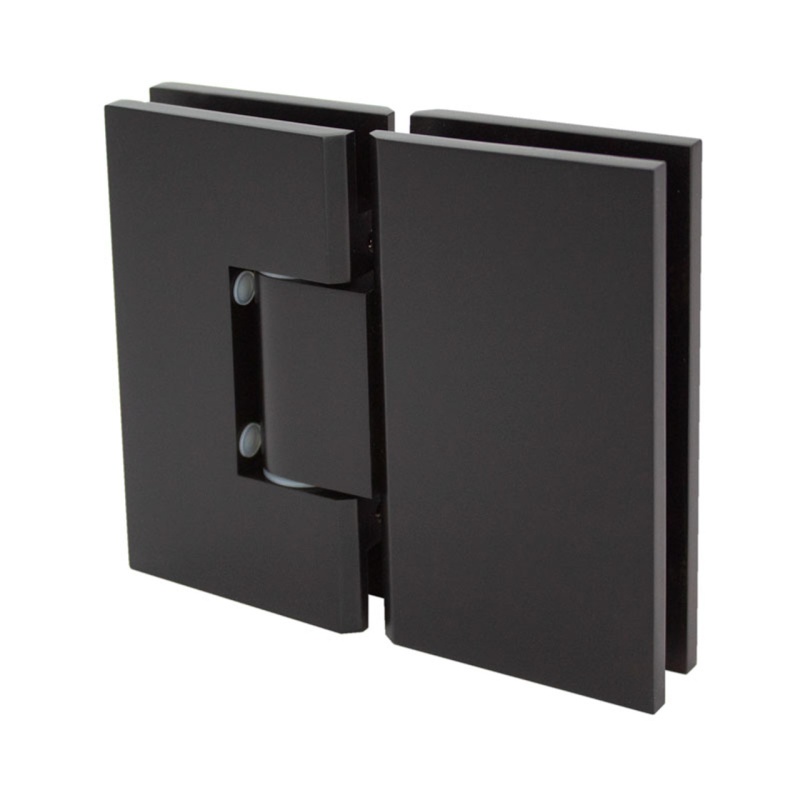

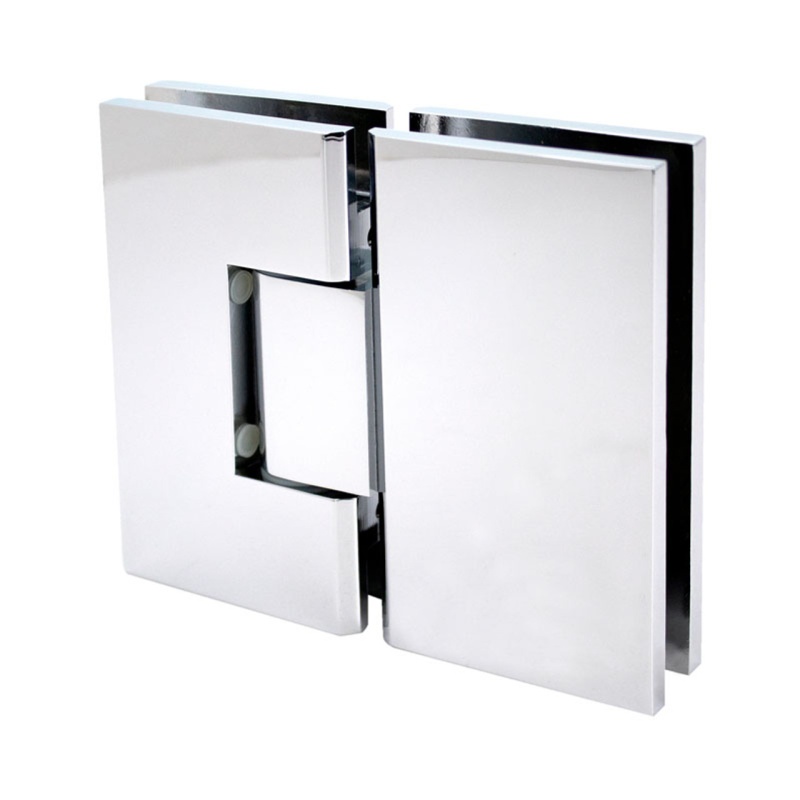

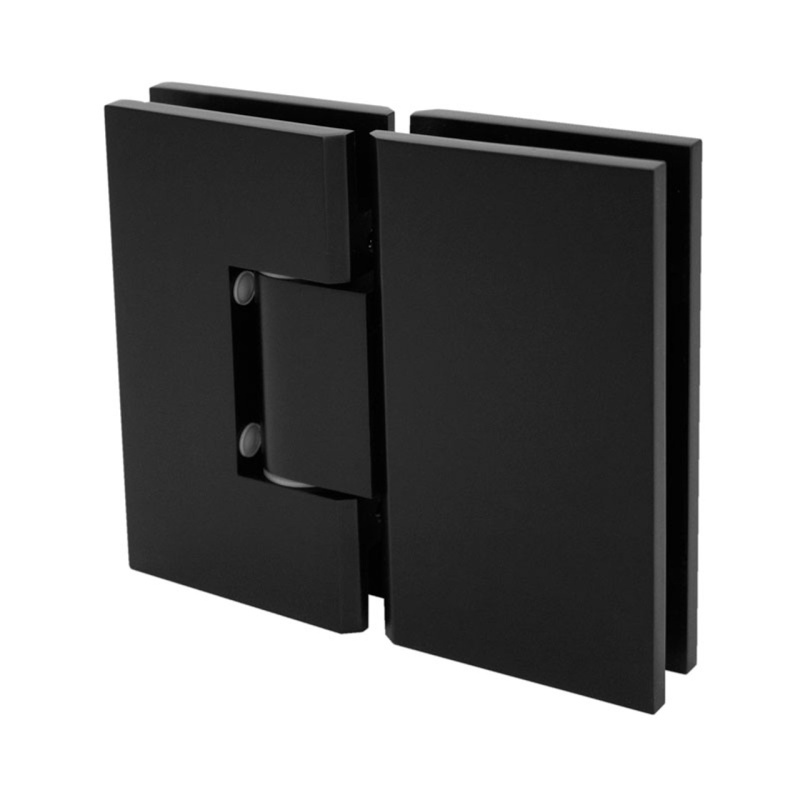

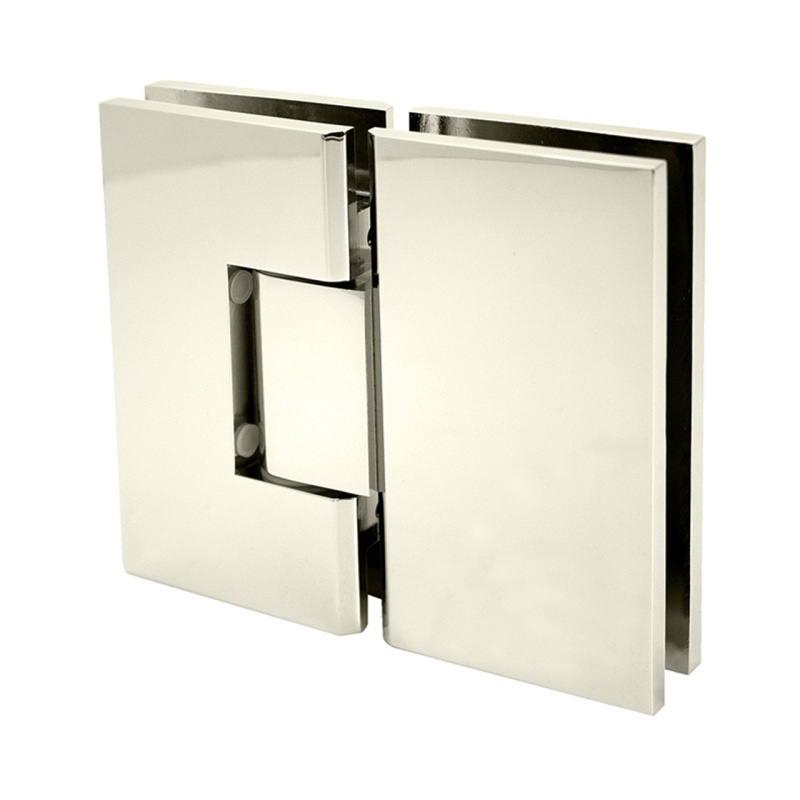

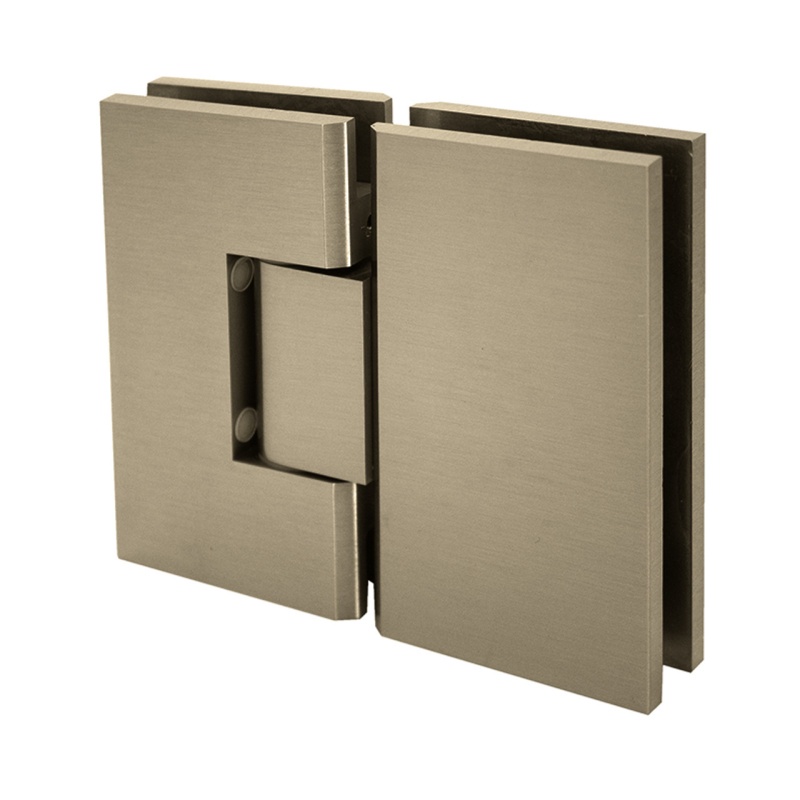

Compare to Victoria VCT180 Heavy Duty Square Profile Glass to Glass 180 Degree Hinge Designed For 3/8"-1/2" Glass For use with tempered or tempered/laminated glass Heavy Duty Design For Wider and Heavier Doors, Max 145lb Self-Centering within 15 Degrees of Closing Position Commonly used in Residential Bath and Commercial Hotel Applications Many Popular Finishes to Select From Includes Hinge Body, Glazing Gaskets, Mounting Screws and Allen and Phillips Head Cover Plate Screws Solid Brass Construction Downloadable Documents Glass Specifications MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS Approx. 5 lb./ft² 1/2" (12 mm) GLASS Approx. 6.4 lb./ft² DOOR WEIGHT DOOR WIDTH Using 2 Hinges 145 LBS (50 kg) 40" (914 mm) NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
Gasket Specifications For 3/8" (10 mm) Glass: Use One Thick Gasket On Each Side. For 1/2" (12 mm) Glass: Use One Thin Gasket On Each Side
Glass Instructions Only use tempered safety glass. To prevent damage to the hinge finish during installation, do not use power tools when installing these hinges.
Overview The Valore Series hinge has a dual degree pivot pin. It comes factory set at 90 degrees for normal door closing applications. There is also a secondary setting on the hinge pivot pin that can be field adjusted to allow an additional 5 degrees of closing for jobs that require a firmer positive position against a jamb or seal.
Care and Cleaning Guidelines For best results, keep the following recommendations in mind when caring for your FHC shower door hardware. Your shower door should be dried daily with a soft towel or cloth to ensure its original finish. Do not use harsh cleaners or chemicals on the hardware, as many of the components are coated with a clear lacquer that will become damaged beyond repair. Always test your cleaning solution in an inconspicuous area prior to cleaning the entire hardware surface. Wipe surfaces clean using a soft, dampened cloth or sponge, and rinse completely with warm water immediately after applying the cleaning solution. Use only small amounts of liquid, gentle, cleaner. Never use abrasive products, sponges, or wire scrub brushes while cleaning hardware.
Maintenance FHC™s hinges come factory greased for a silent, hassle-free experience. If there is any noticeable squeaking that occurs after installation it is recommended to apply a few drops of (3 in 1) multi-purpose oil to the hinge, at the nylon washer/pivot location. The lubricant will penetrate the hinge crevices, reducing friction, cleaning grime, and/or buildup. Spray lubricants are prohibited. If, for some reason, the hinge is disassembled during maintenance, use a small amount of white lithium grease to lubricate the interior hinge components.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
WARNING: Cancer and Reproductive Harm. Learn More
Product Name FHC Valore HD Square Glass To Glass 180 Degree Hinge Item No VAL180 Compare To VCT180
