Replacement ScrewsPS102andPS103are Available as Needed Can be used with Hinge Limit PlatesHLP25andHLP40 Compare to V1E337, HMGTWAFP For use with tempered or tempered/laminated glass Downloadable Documents Glass Specifications MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS Approx. 5 lb./ft² 1/2" (12 mm) GLASS Approx. 6.4 lb./ft² DOOR WEIGHT DOOR WIDTH Using 2 Hinges 110 LBS (50 kg) 36" (914 mm) Using 3 Hinges 140 LBS. (64 kg) 36" (914 mm) NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit

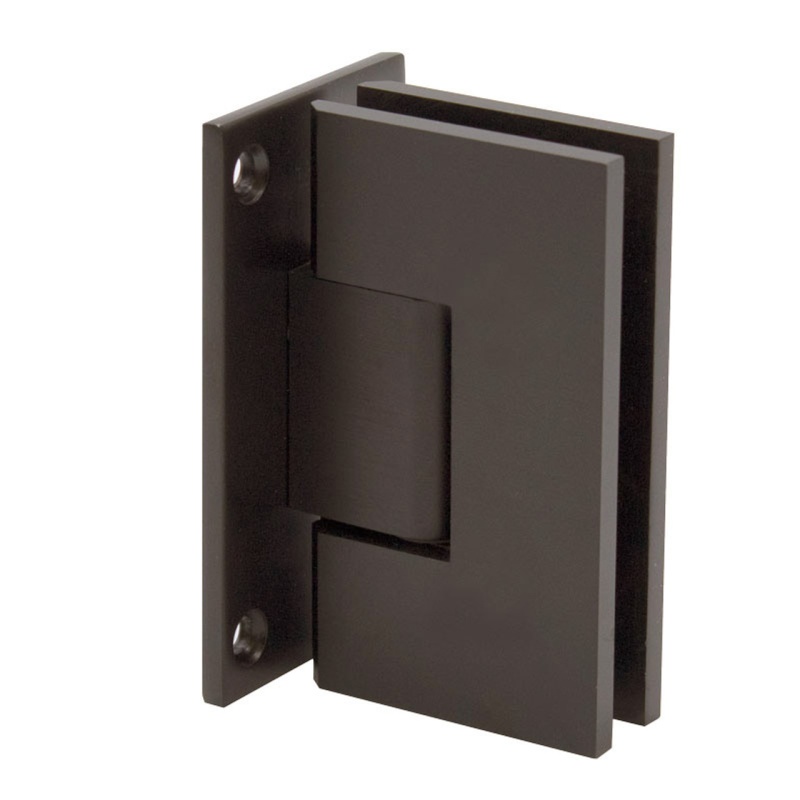

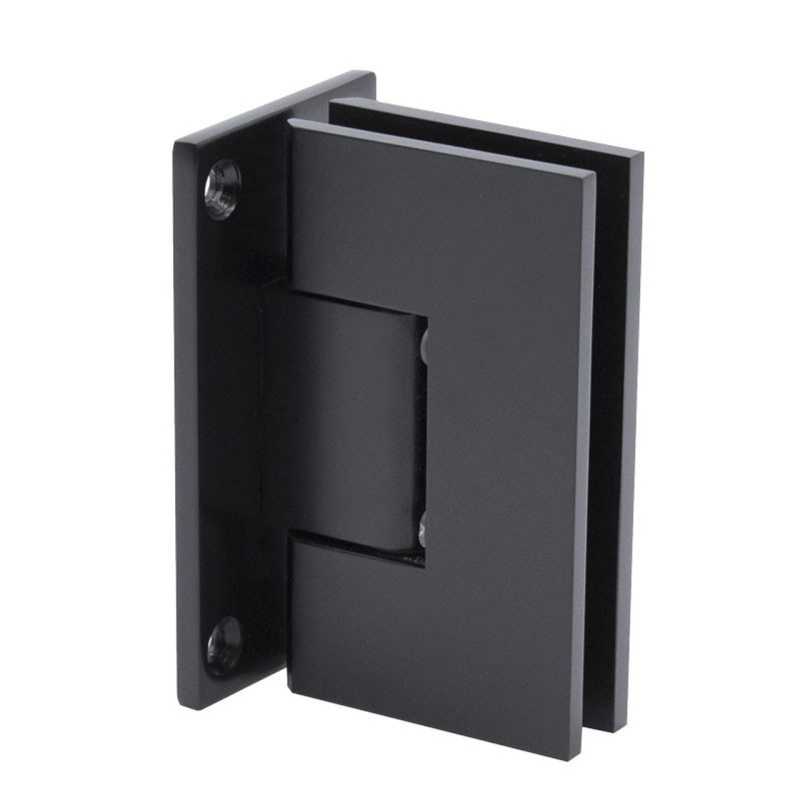

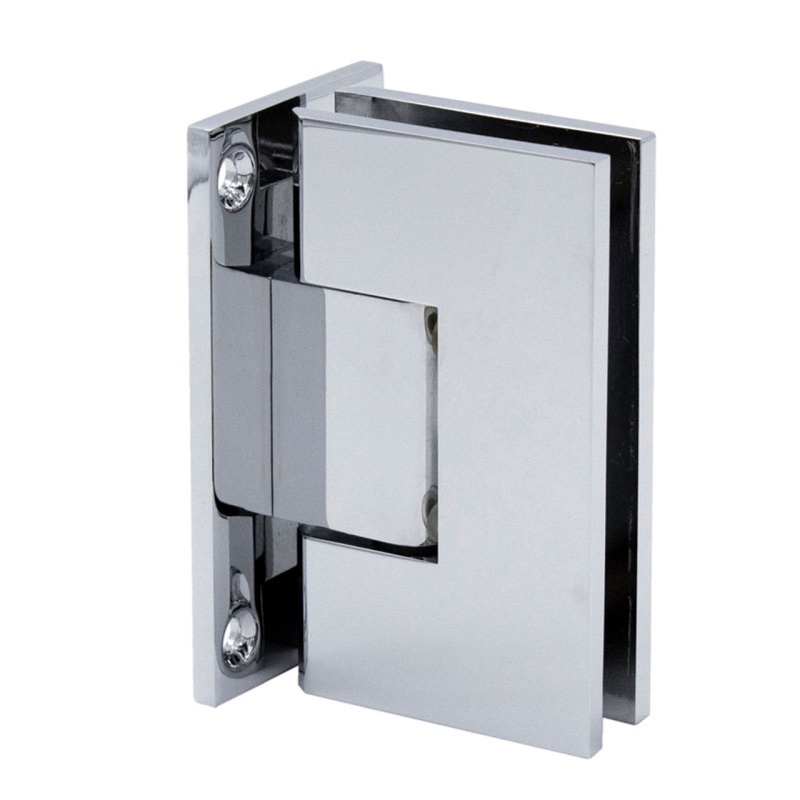

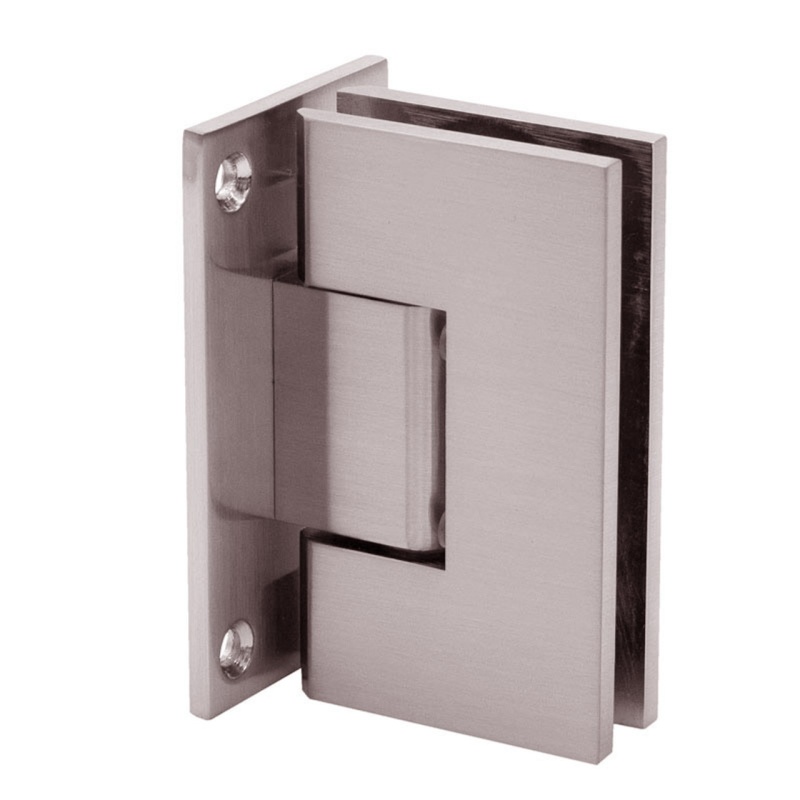

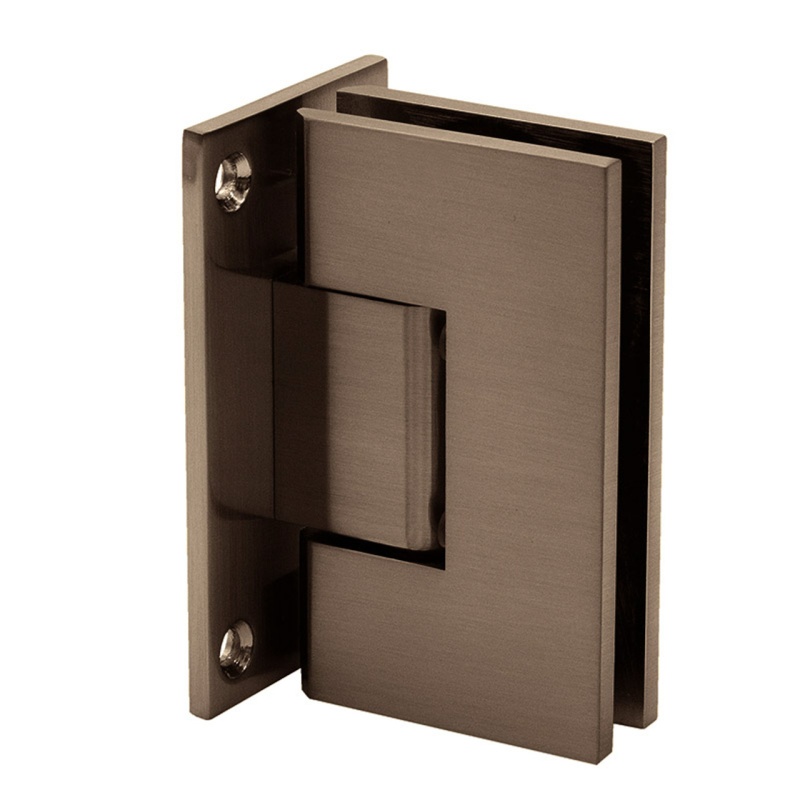

More Information Product Name FHC Venice Adjustable Square Wall Mount Hinge Full Back Plate Item No VENA4 Compare To V1E337, HMGTWAFP Minimum Order 1 Each
