Compare to Vienna V1E092 For 3/8" to 1/2" Glass For use with tempered or tempered/laminated glass Available in 4 Finishes Solid Brass Construction Used in 90 Degree Glass to Glass Applications Can Support Larger Doors than Typical Hinges Easily Converts to 5 Degree Offset Downloadable Documents Glass Specifications MAXIMUM DOOR CAPACITY 3/8" (10 mm) GLASS Approx. 5 lb./ft² 1/2" (12 mm) GLASS Approx. 6.4 lb./ft² DOOR WEIGHT DOOR WIDTH Using 2 Hinges 110 LBS (50 kg) 36" (914 mm) Using 3 Hinges 140 LBS. (64 kg) 36" (914 mm) NOTE: Do Not Exceed either maximum weight or width when choosing proper quantity of hinges.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit

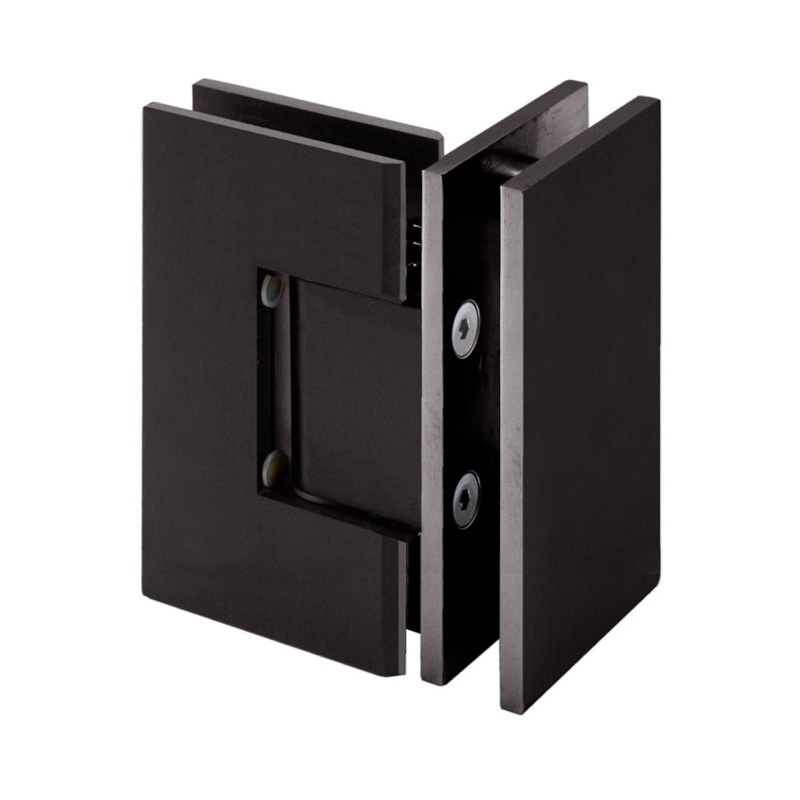

More Information Product Name FHC Venice Square Glass To Glass 90 Degree Hinge Item No VEN90 Compare To V1E092 Minimum Order 1 Each
