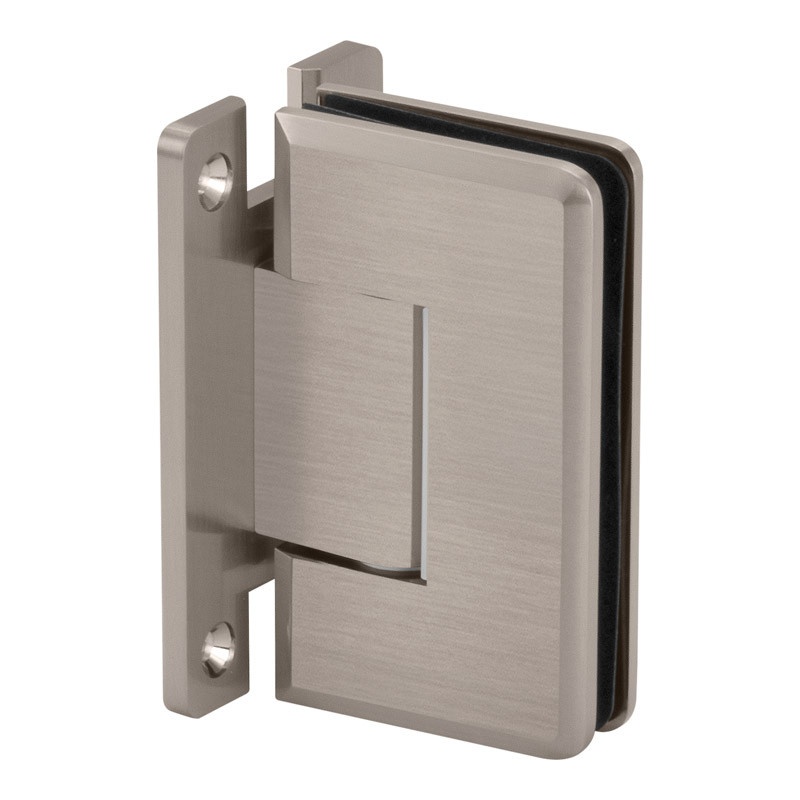

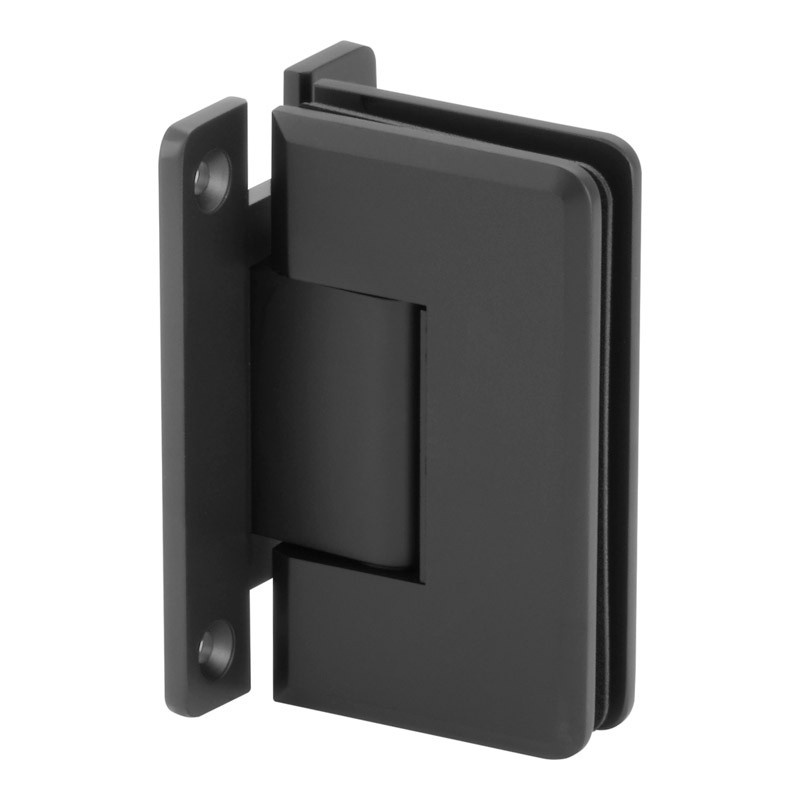

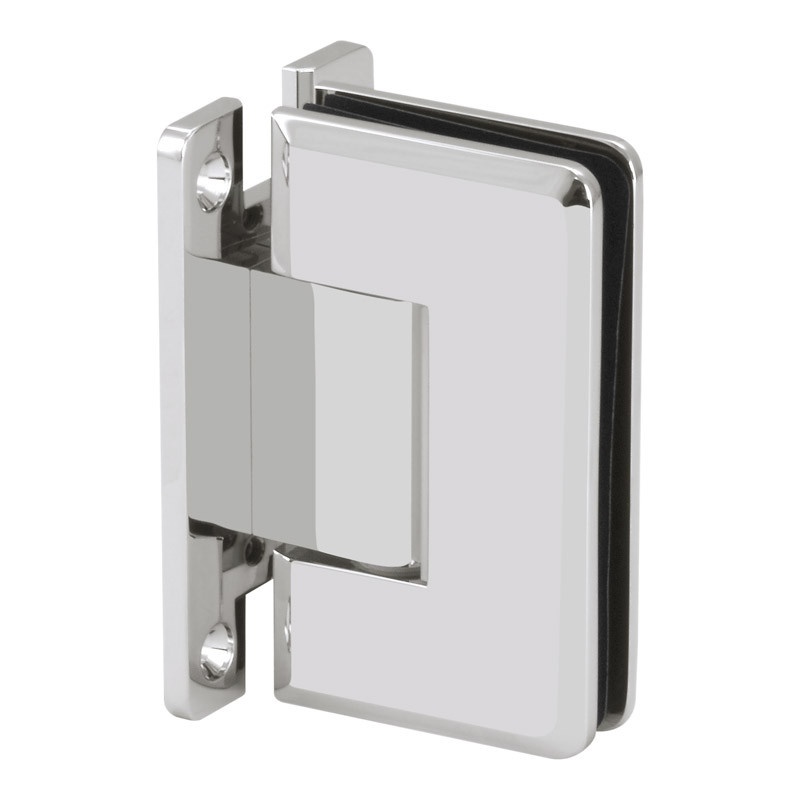

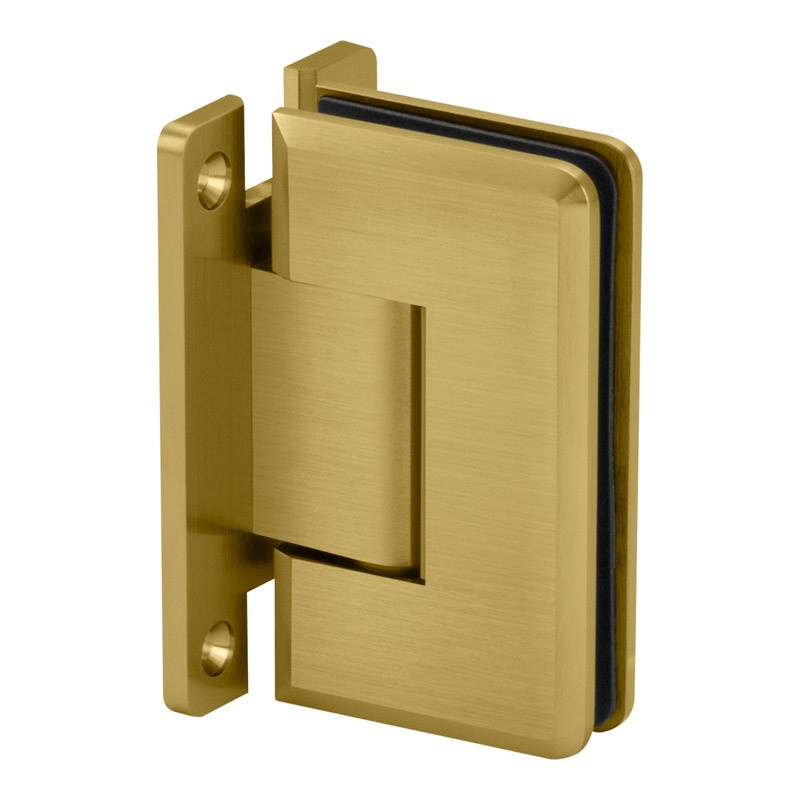

Compare to C0L037, HMBGTWFP, CLNF1 Wall mount hinge with H back plate Self-centering, (90 degree factory set) 5 degree positive close option - the pin can be rotated to 85 degrees, thus allowing for a 5 degree tighter close For 3/8”-1/2” glass For use with tempered or tempered/laminated glass Solid brass Swings 90 degrees both ways Strong design for heavier doors Downloadable Documents
Other Details
Edge: Beveled profile Compare to: C0L037, HMBGTWFP, CLNF1 Technical Specifications
If using 2 hinges, maximum door weight is 110 lbs and maximum door width is 36” (914 mm). If using 3 hinges, maximum door weight is 140 lbs, and maximum door width is 36” (914 mm). DO NOT exceed the maximum door weight OR door width for the number of hinges you are using. Only monolithic tempered glass may be used. Avoid using power tools during hinge installation as these may damage the finish. Product Details
This Columbia series hinge offers appealing features. It is a wall mount hinge with “H” back plate made of solid brass and available in various popular finishes. The 90 degree factory setting of the pivot pin is right for standard door closure. Purchaser can adjust the pivot pin for 5 more degrees of closure if the door needs to close with more pressure against the jamb.
Cleaning Your Glass Simple Hardware
Dry hardware after use to minimize water spots and other discoloration. Avoid harsh or abrasive cleaning agents, scrub brushes, etc. as these will damage the finish. Use a mild mixture of gentle liquid soap and water and test on an inconspicuous part of the hardware first. After washing, thoroughly rinse with clean warm water and buff dry. Hinge Care
Glass Simple hinges arrive pre-greased for quiet operation. In the event of a hinge squeaking, add a several drops of mult-purpose oil around the nylon washer. If the hinge is taken apart, the interior components should be lubricated with a little bit of white lithium grease. Avoid spray-on lubricants. ⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to
