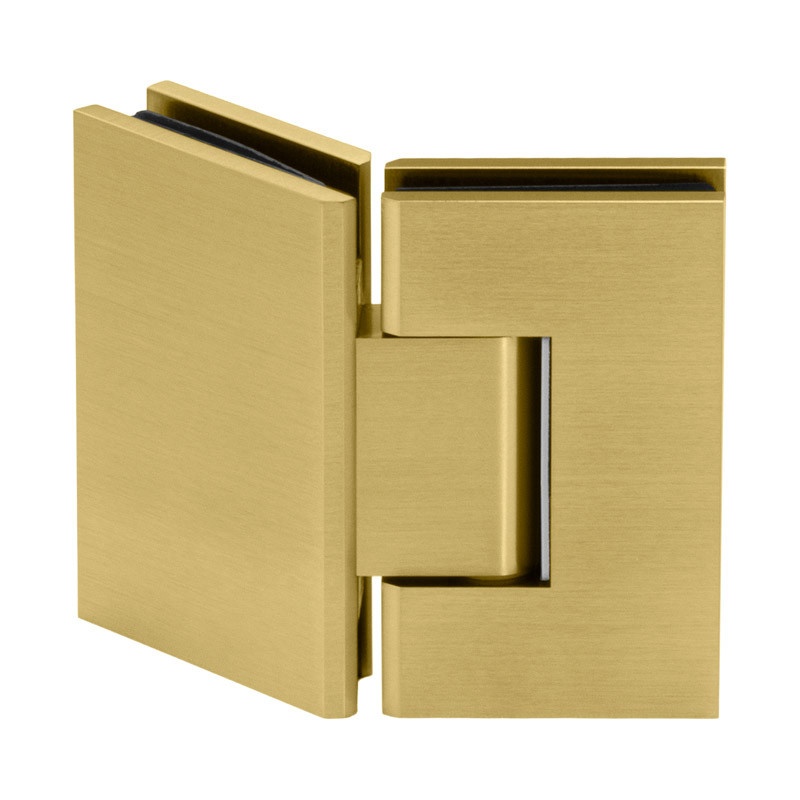

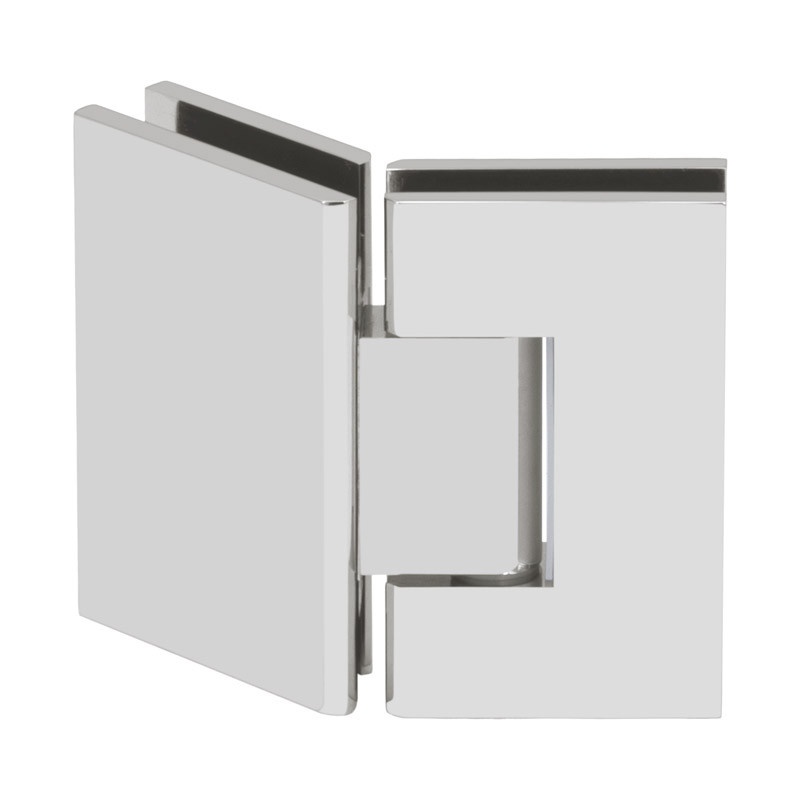

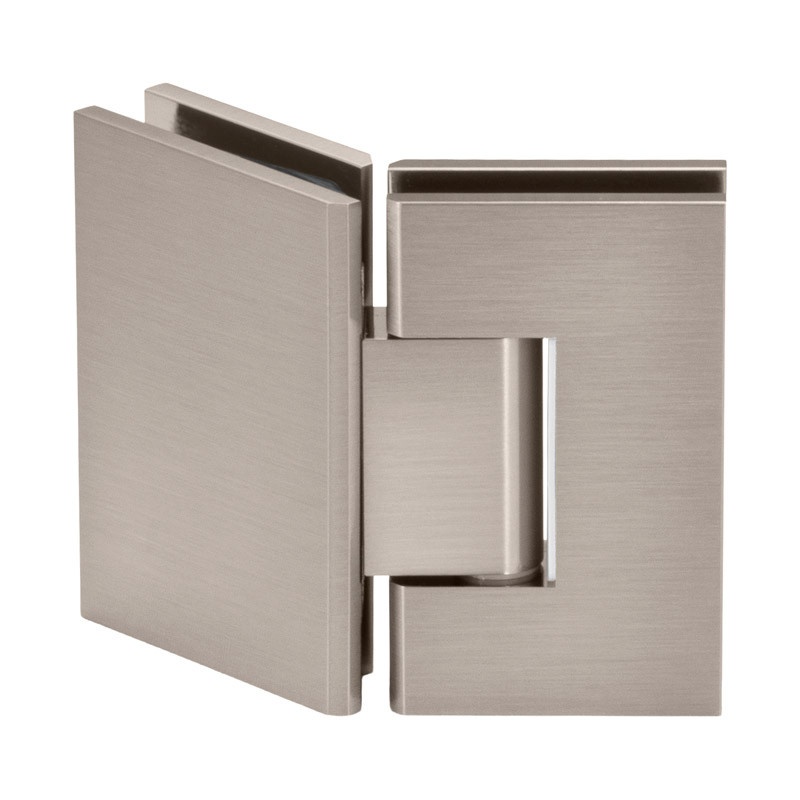

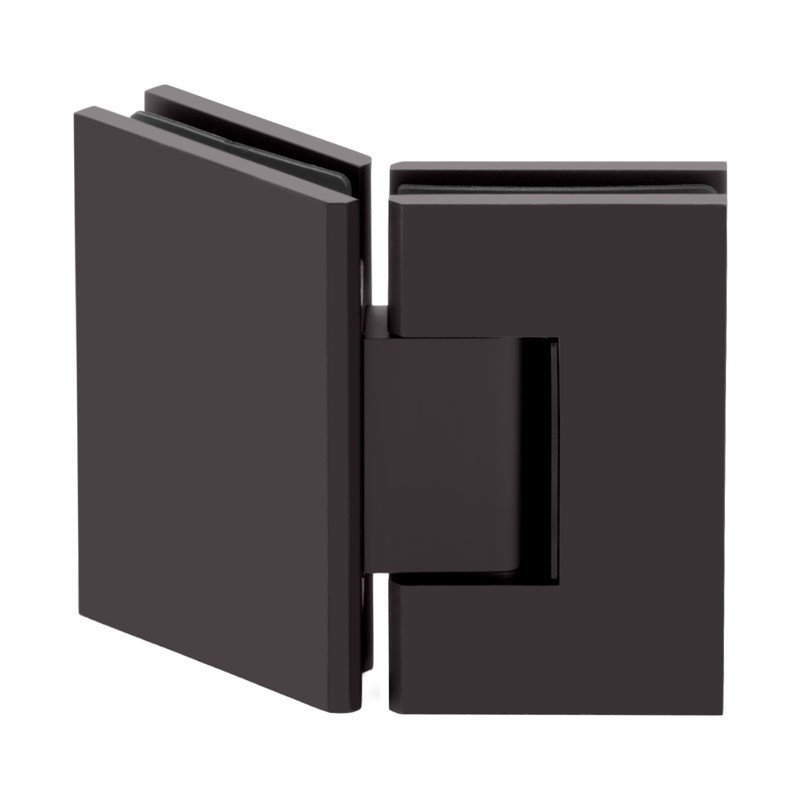

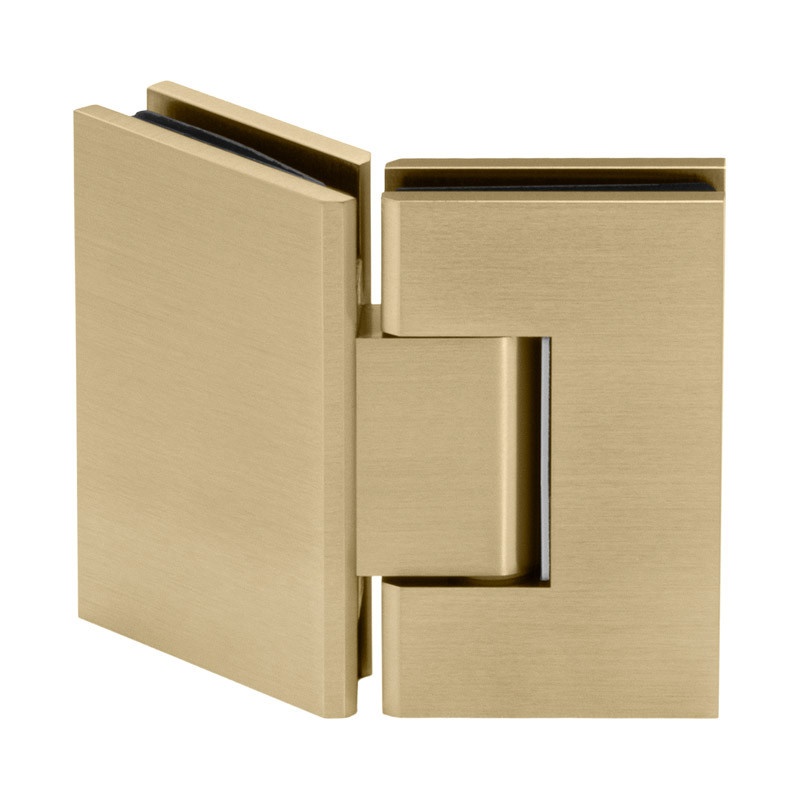

Compare to GLEN135, GEN045, H135GTG Self-centering 135 degree glass to glass hinge For 3/8”-1/2” glass For use with tempered or tempered/laminated glass Swings 90 degrees both ways Solid brass
Other Details
Edge: Square profile Technical Specifications
If using 2 hinges, maximum door weight is 80 lbs and maximum door width is 28” (711 mm). If using 3 hinges, maximum door weight is 120 lbs, and maximum door width is 32” (813 mm). DO NOT exceed the maximum door weight OR door width for the number of hinges you are using. A single set of gaskets is provided with the hinge and is intended for use with either 3/8” or 1/2” glass. Only tempered or tempered laminated glass may be used. Avoid using power tools during hinge installation as these may damage the finish. Product Details
This Genesis series hinge offers appealing features. It is a glass to glass hinge made of solid brass and available in various popular finishes. The 90 degree factory setting of the pivot pin is right for standard door closure. Purchaser can adjust the pivot pin for 5 more degrees of closure if the door needs to close with more pressure against the jamb. The hinge comes with a bidirectional hinge block bumper that is designed to protect the hinge block when the door swings to the full opening position in and out.
Cleaning Your Glass Simple Hardware
Dry hardware after use to minimize water spots and other discoloration. Avoid harsh or abrasive cleaning agents, scrub brushes, etc. as these will damage the finish. Use a mild mixture of gentle liquid soap and water and test on an inconspicuous part of the hardware first. After washing, thoroughly rinse with clean warm water and buff dry. Hinge Care
Glass Simple hinges arrive pre-greased for quiet operation. In the event of a hinge squeaking, add a several drops of multi-purpose oil around the nylon washer. If the hinge is taken apart, the interior components should be lubricated with a little bit of white lithium grease. Avoid spray-on lubricants. ⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to
