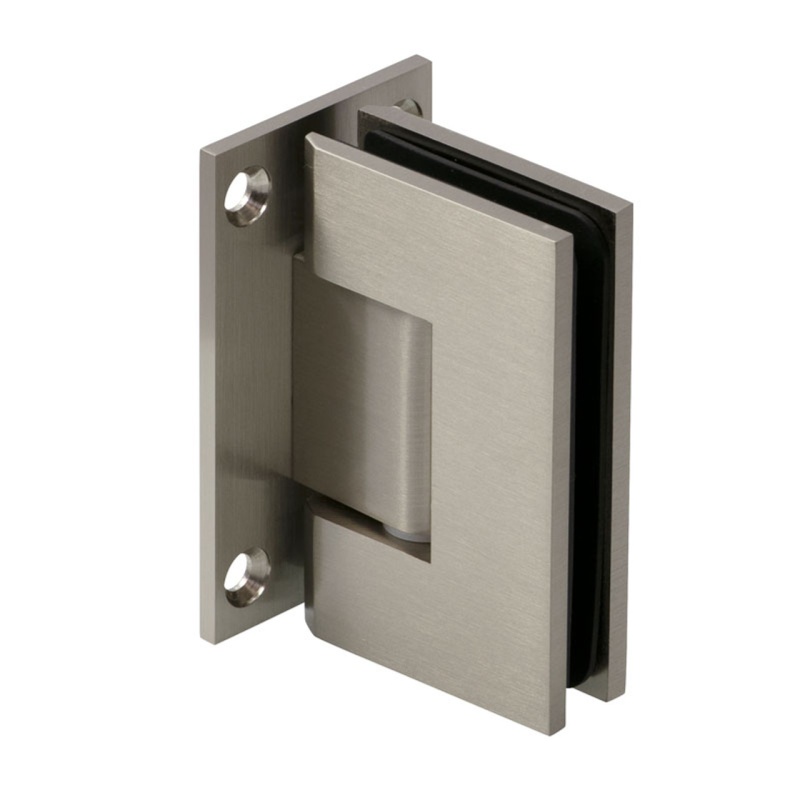

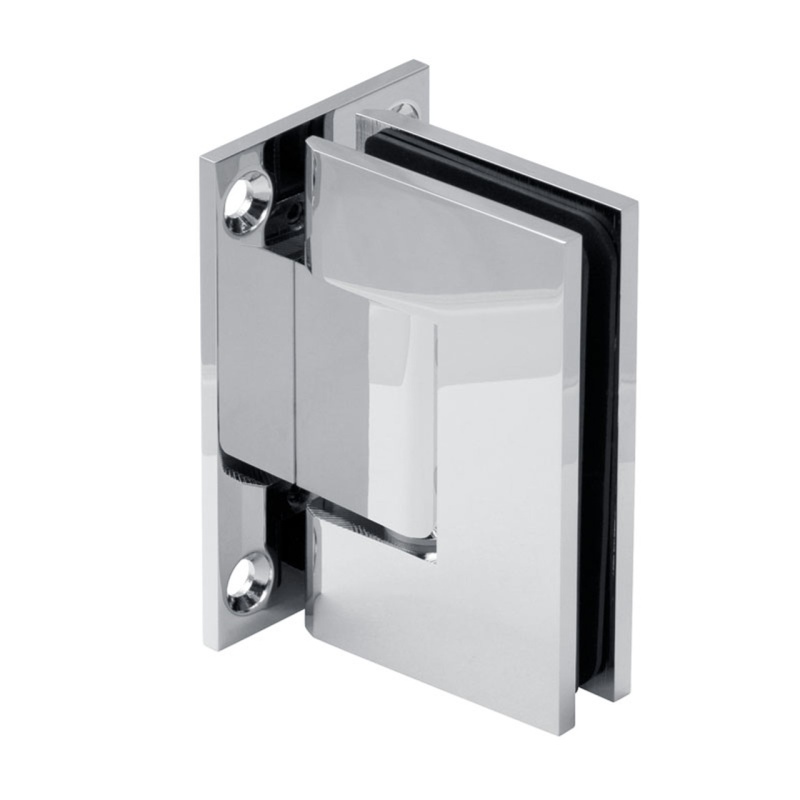

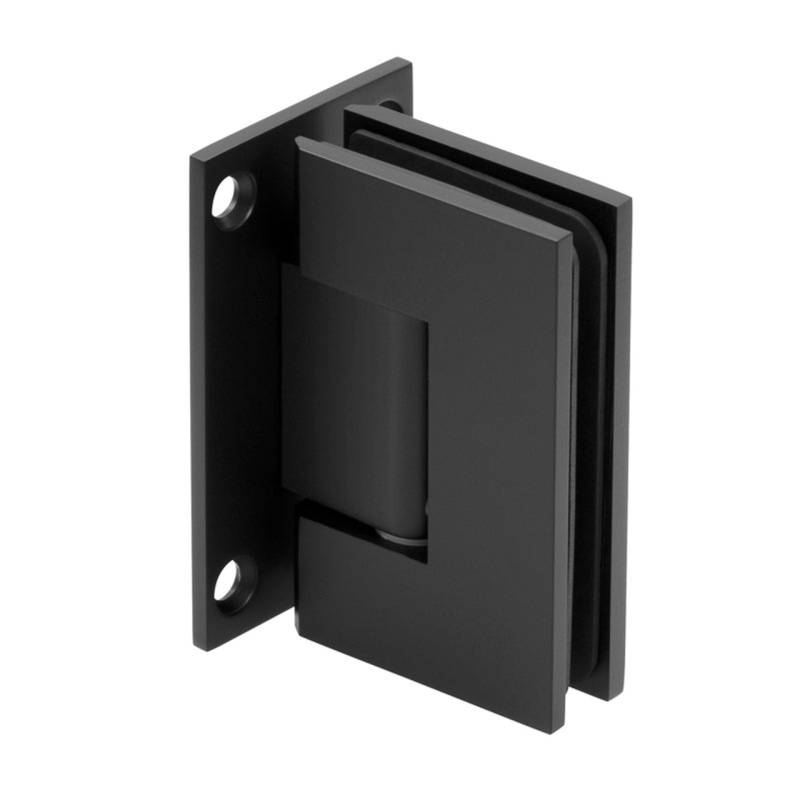

Compare to GEN537, GLENF5, HGTW5FP Wall mount hinge with full back plate 5 degree positive close, (85 degree factory set) The pin can be rotated to achieve self centering close position For 3/8”-1/2” glass For use with tempered or tempered/laminated glass Solid brass Swings 90 degrees both ways Other Details
Edge: Square profile
Technical Specifications
If using 2 hinges, maximum door weight is 80 lbs and maximum door width is 28” (711 mm). If using 3 hinges, maximum door weight is 120 lbs, and maximum door width is 32” (813 mm). DO NOT exceed the maximum door weight OR door width for the number of hinges you are using. Use tempered or tempered laminated glass only. Do not use power equipment to install these hinges as it could damage the finish. Gasket Specifications: A single set of gaskets is provided with the hinge and is intended for use with either 3/8” or 1/2" glass.
Product Details
This Genesis series hinge offers appealing features. It is a wall mount hinge with full back plate made of solid brass and available in various popular finishes. The hinge comes with the pin set at 85 degrees for 5 degrees of extra pressure against the jamb. The pin can be adjusted for standard 90 degree door closure if desired.
Cleaning Your Glass Simple Hardware
Dry hardware after use to minimize water spots and other discoloration. Avoid harsh or abrasive cleaning agents, scrub brushes, etc. as these will damage the finish. Use a mild mixture of gentle liquid soap and water and test on an inconspicuous part of the hardware first. After washing, thoroughly rinse with clean warm water and buff dry.
Hinge Care
Glass Simple hinges arrive pre-greased for quiet operation. In the event of a hinge squeaking, add a several drops of multi-purpose oil around the nylon washer. If the hinge is taken apart, the interior components should be lubricated with a little bit of white lithium grease. Avoid spray-on lubricants.
