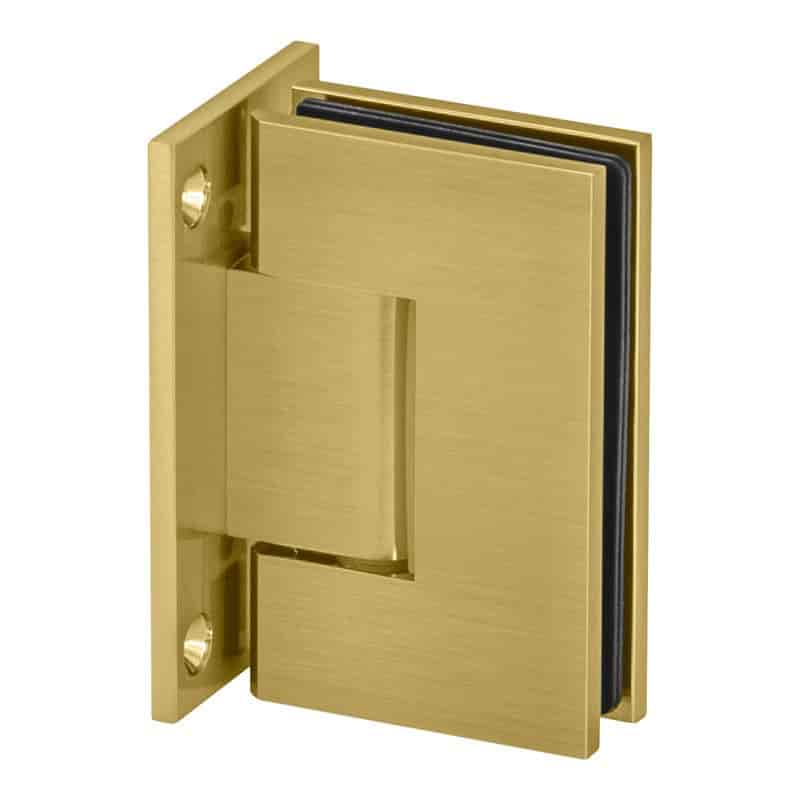

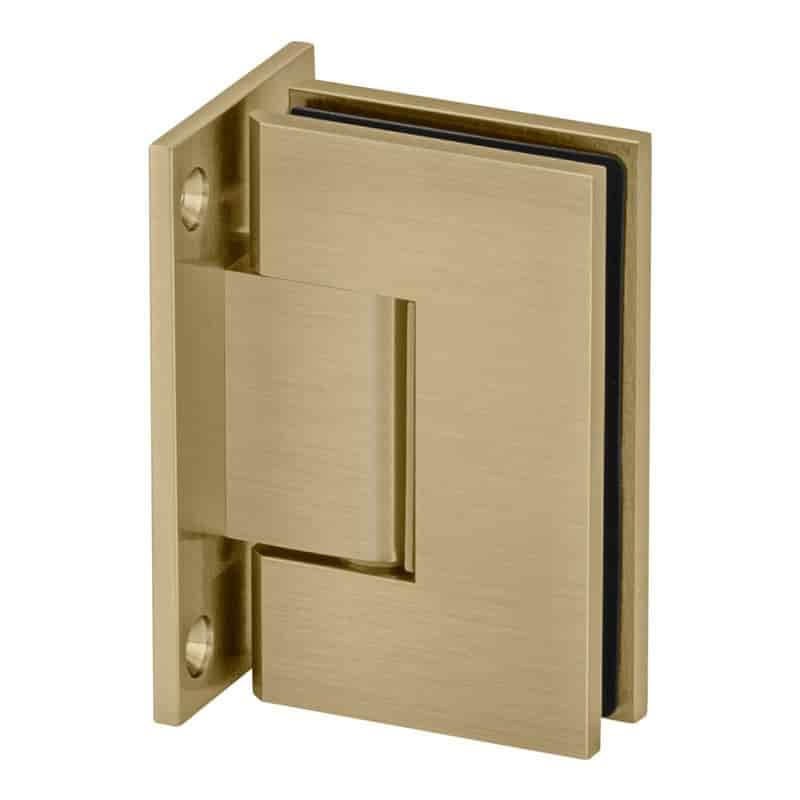

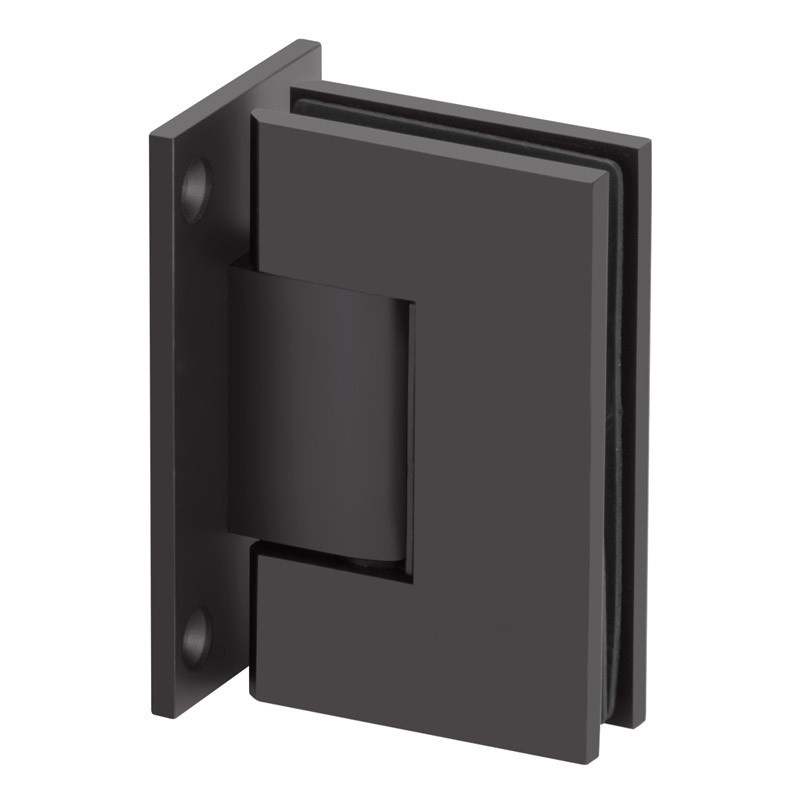

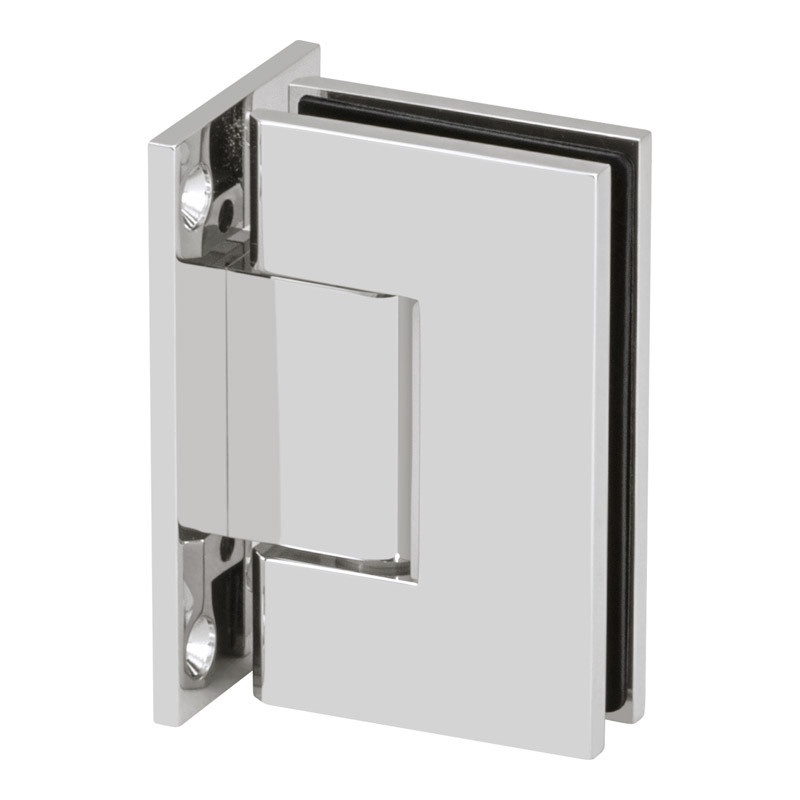

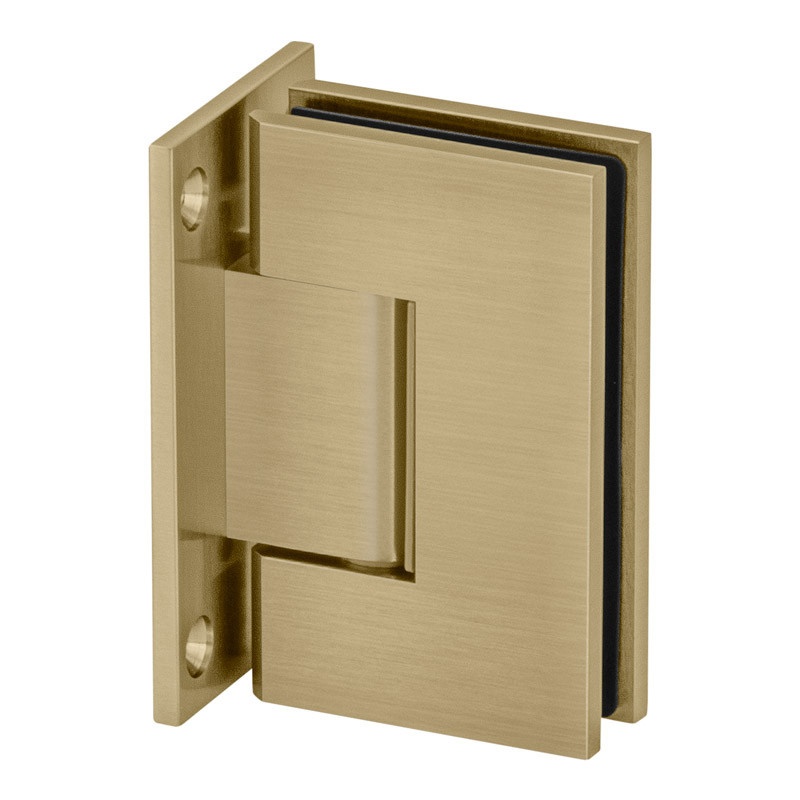

The Glass Simple Genesis wall-mount shower door hinge features a full back plate, square profile edge, and solid brass construction. Finish options are Brushed Nickel, Polished Chrome, Matte Black, Brushed Bronze, Satin Brass, and Polished Nickel.
This self-centering hinge is factory set at 90 degrees and swings 90 degrees both ways. Rotate the pin to 85 degrees for a 5 degree positive-close option. It is for 3/8”-1/2” tempered or tempered/laminated glass only. One set of gaskets is included and is intended for use with either glass thickness.
With 2 hinges, the maximum door weight is 80 lbs and maximum door width is 28” (711 mm). With 3 hinges, the maximum door weight is 120 lbs and maximum door width is 32” (813 mm). Do not exceed the maximum door weight or width for the number of hinges used. Do not use power equipment to install the hinges, as it could damage the finish.
The hinges arrive pre-greased for quiet operation. If a hinge squeaks, add several drops of multi-purpose oil around the nylon washer. If disassembled, lubricate the interior components with a little white lithium grease; avoid spray-on lubricants. Dry hardware after use. Clean with a mild mixture of gentle liquid soap and water, testing an inconspicuous area first. Rinse thoroughly with clean warm water and buff dry; avoid harsh or abrasive cleaners and scrub brushes.
