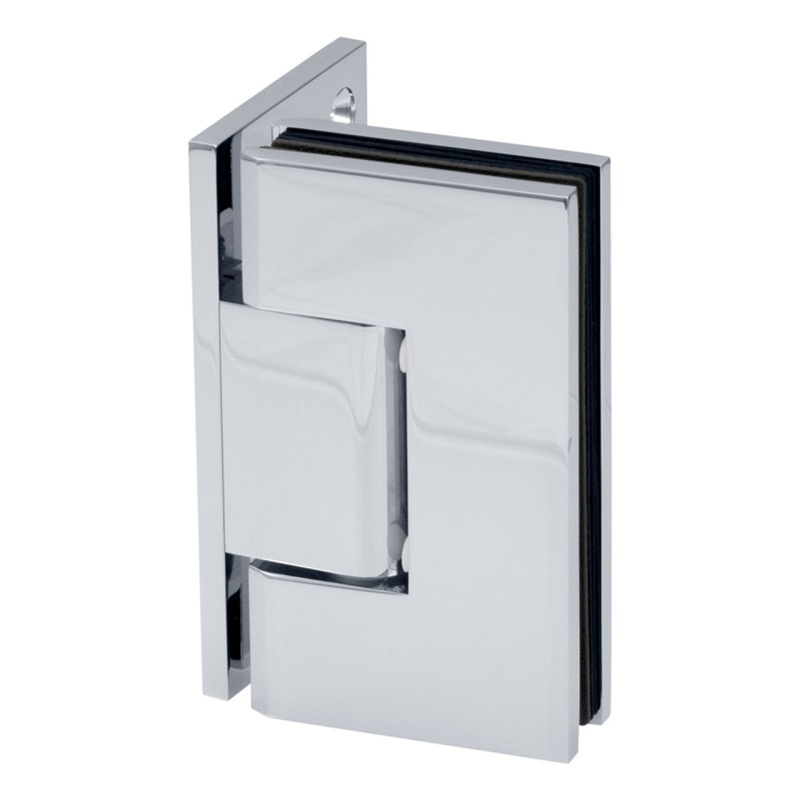

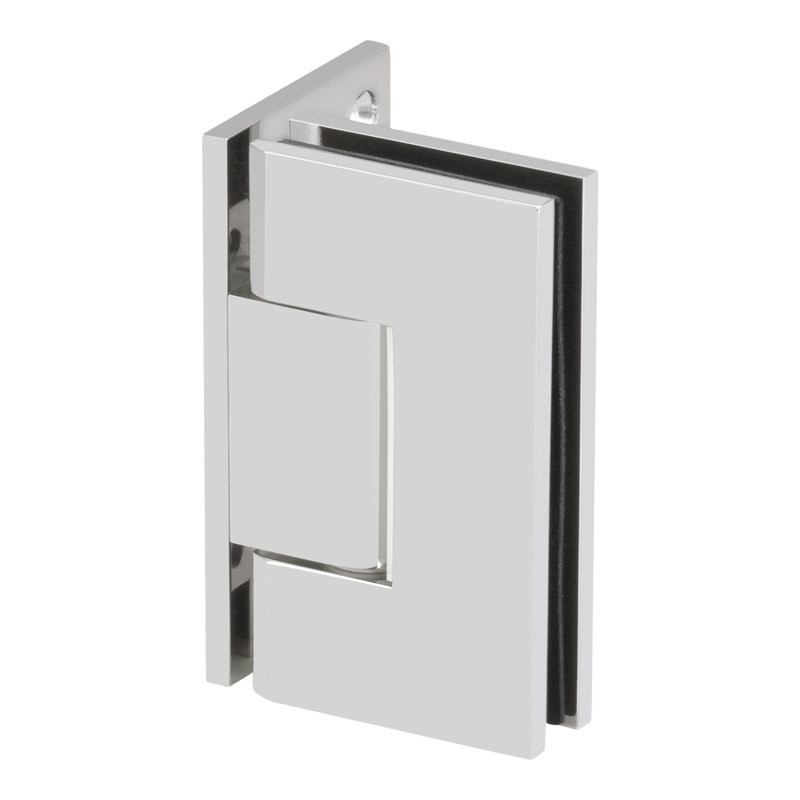

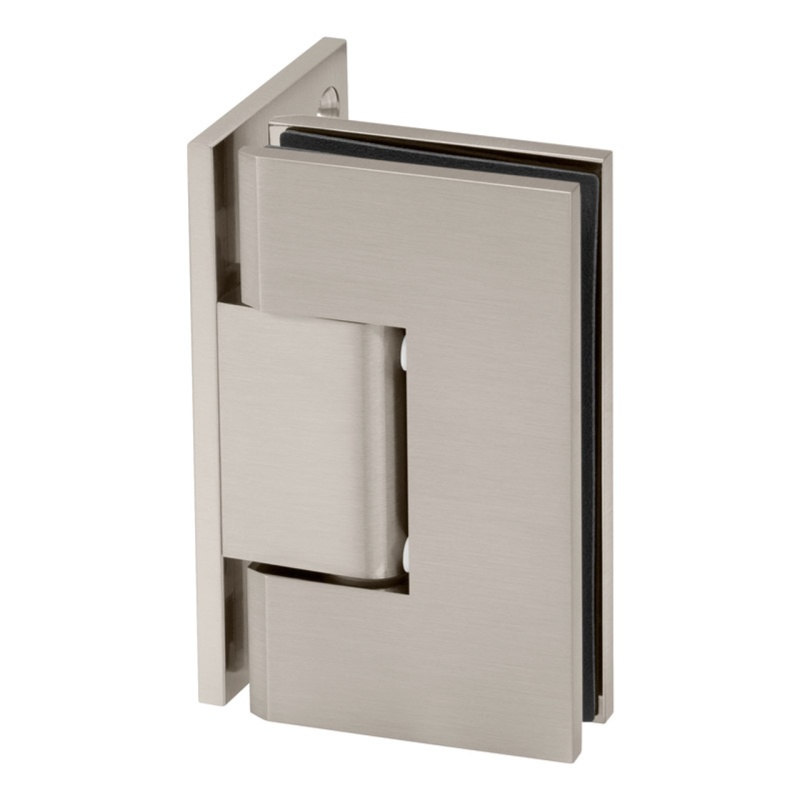

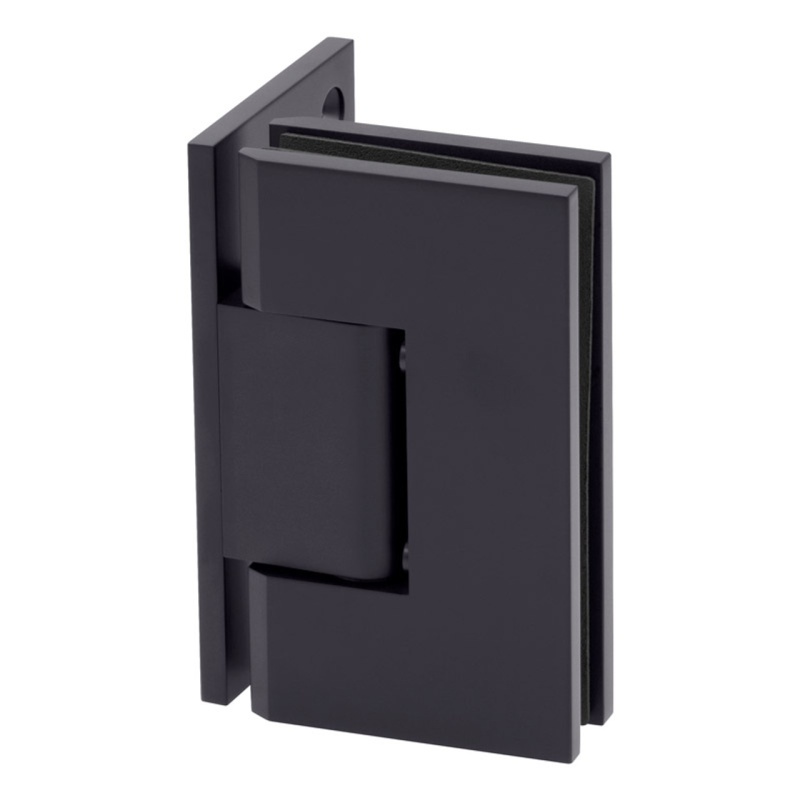

Compare to V1E544, VEN05 Wall mount hinge with offset back plate 5 degree positive close, (85 degree factory set) The pin can be rotated to achieve self centering close position For 3/8”-1/2” glass For use with tempered or tempered/laminated glass Solid brass Swings 90 degrees both ways Strong design for heavier doors Other Details
Edge: Square profile Technical Specifications
If using 2 hinges with 3/8” glass, maximum door weight is 100 lbs and maximum door width is 34” (864 mm). If using 2 hinges with 1/2” glass, maximum door weight is 100 lbs and maximum door width is 32” (813 mm). If using 3 hinges with 3/8” glass, maximum door weight is 130 lbs, and maximum door width is 34” (864 mm). If using 3 hinges with 1/2” glass, maximum door weight is 130 lbs, and maximum door width is 32” (813 mm). DO NOT exceed the maximum door weight OR door width for the number of hinges you are using. Only monolithic tempered glass may be used. Avoid using power tools during hinge installation as these may damage the finish. One thick gasket on each side is needed for 3/8” (10 mm) glass. One thin gasket on each side is needed for 1/2" (12 mm) glass. Product Details
This Verona series hinge offers appealing features. It is a soild brass wall mount hinge with offset back plate, available in various popular finishes. The hinge comes with the pin set at 85 degrees for 5 degrees of extra pressure against the jamb. The pin can be adjusted for standard 90 degree door closure if desired.
Cleaning Your Glass Simple Hardware
Dry hardware after use to minimize water spots and other discoloration. Avoid harsh or abrasive cleaning agents, scrub brushes, etc. as these will damage the finish. Use a mild mixture of gentle liquid soap and water and test on an inconspicuous part of the hardware first. After washing, thoroughly rinse with clean warm water and buff dry. Hinge Care
Glass Simple hinges arrive pre-greased for quiet operation. In the event of a hinge squeaking, add a several drops of mult-purpose oil around the nylon washer. If the hinge is taken apart, the interior components should be lubricated with a little bit of white lithium grease. Avoid spray-on lubricants. ⚠️ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to
