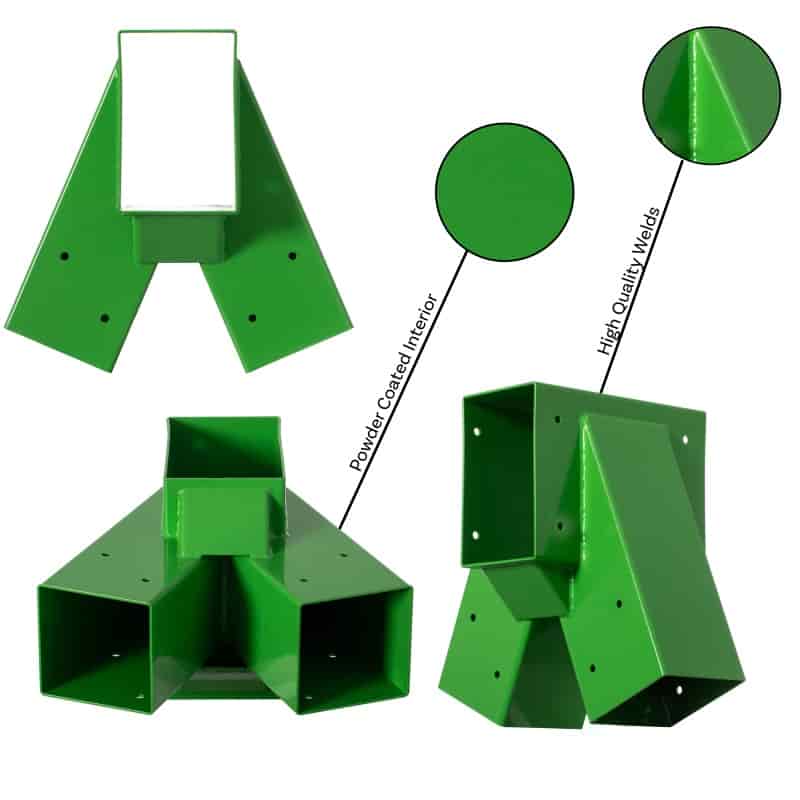

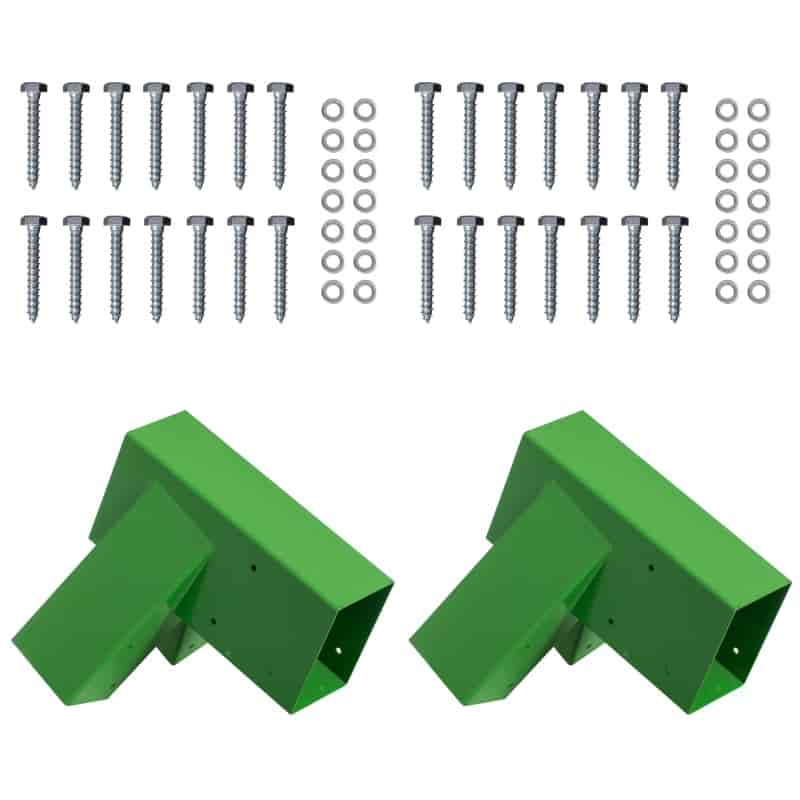

This Vintiquewise A-frame swing set bracket kit is designed for residential backyard swing sets. It includes 2 heavy-gauge steel brackets and 2 sets of bracket hardware. Each bracket weighs 10 pounds and has a solid, one-piece, open-ended design with 100% welded joints and a powder-coated green finish. The design features 14 pre-drilled holes. Variant options: Set Of 2 Corner and Center.

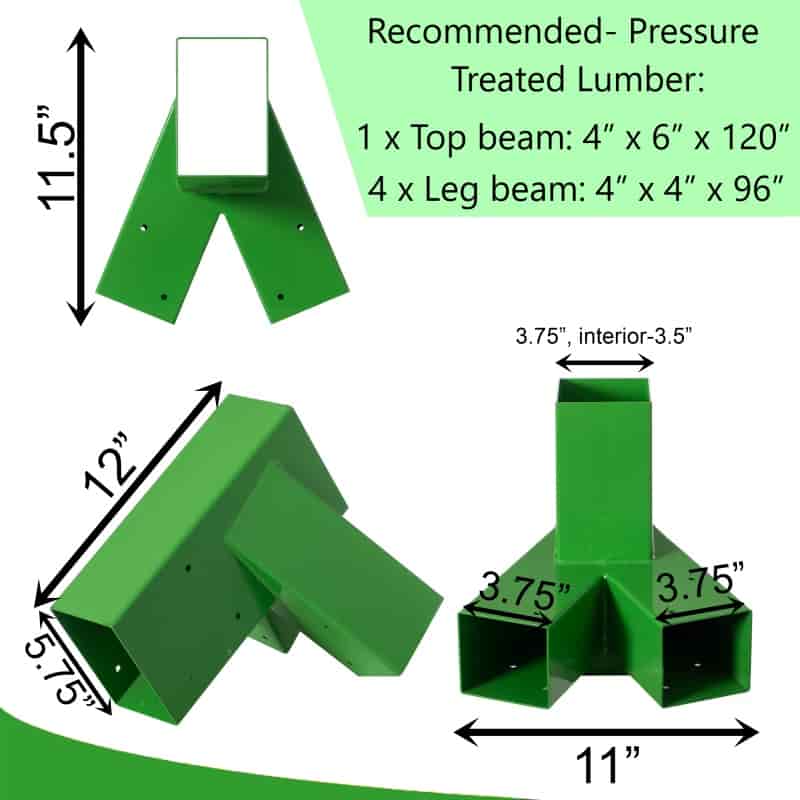

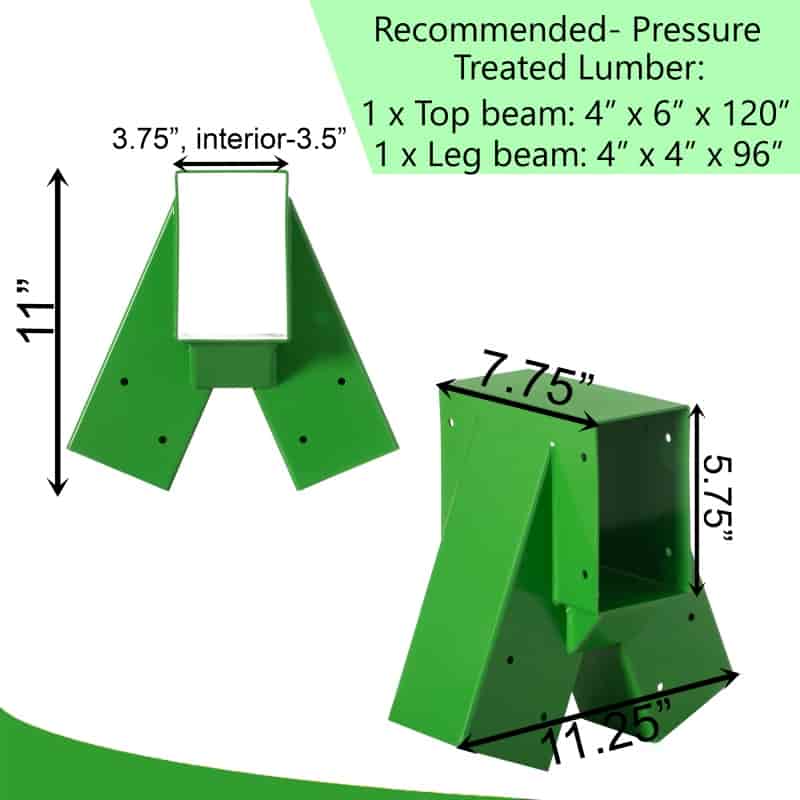

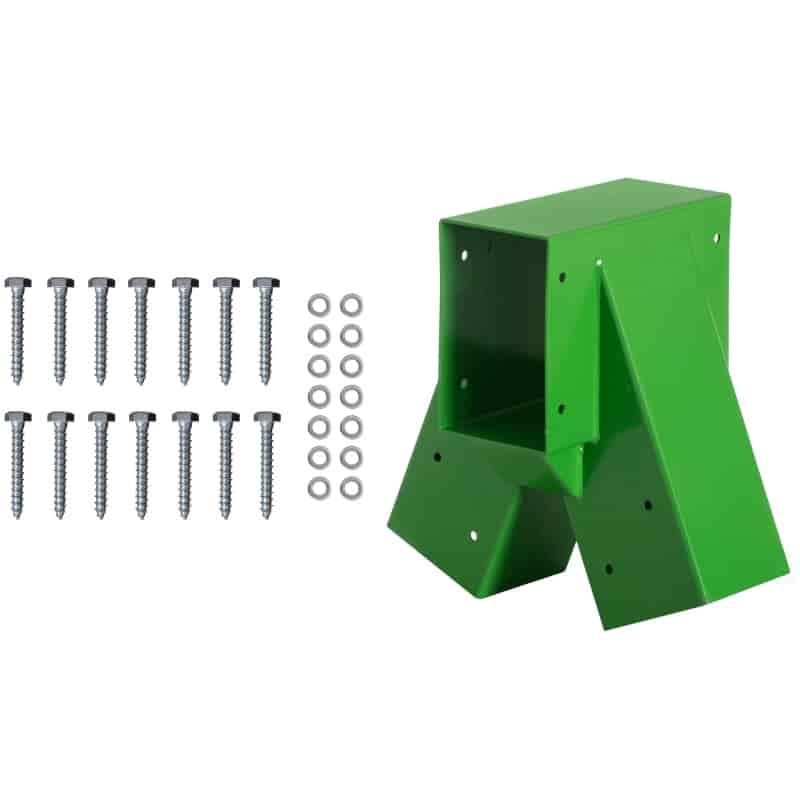

The hardware includes 28 zinc-coated steel lag bolts measuring 5/16" x 3" and 28 washers. The brackets are designed for a kiln-dried 4x6 top beam (true measurements: 3-1/2" x 5-1/2") and four 4x4 side support legs (true measurements: 3-1/2" x 3-1/2"). Bracket openings measure 3-5/8" x 5-5/8" and 3-5/8" x 3-5/8".
For a basic A-frame, the recommended lumber is one 4x6 144 inches top beam and four 4x4 96 inches side support legs. Lumber is not included. Wood should slide in easily and fit snugly; do not force it into the brackets. If boards are too large, plane them down for a proper fit. Intended for residential use and should be installed by adults.
